ALG TW CS Series

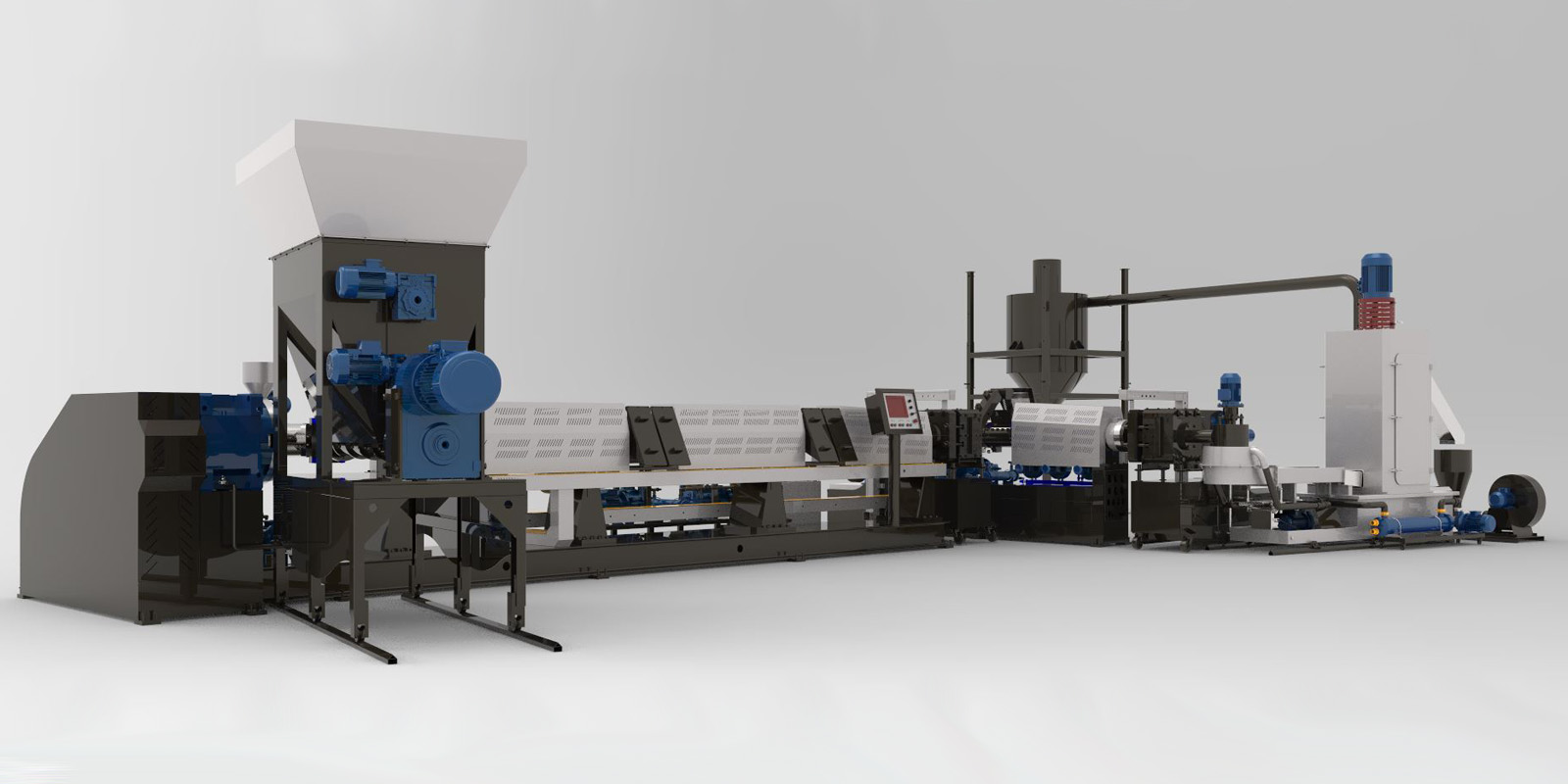

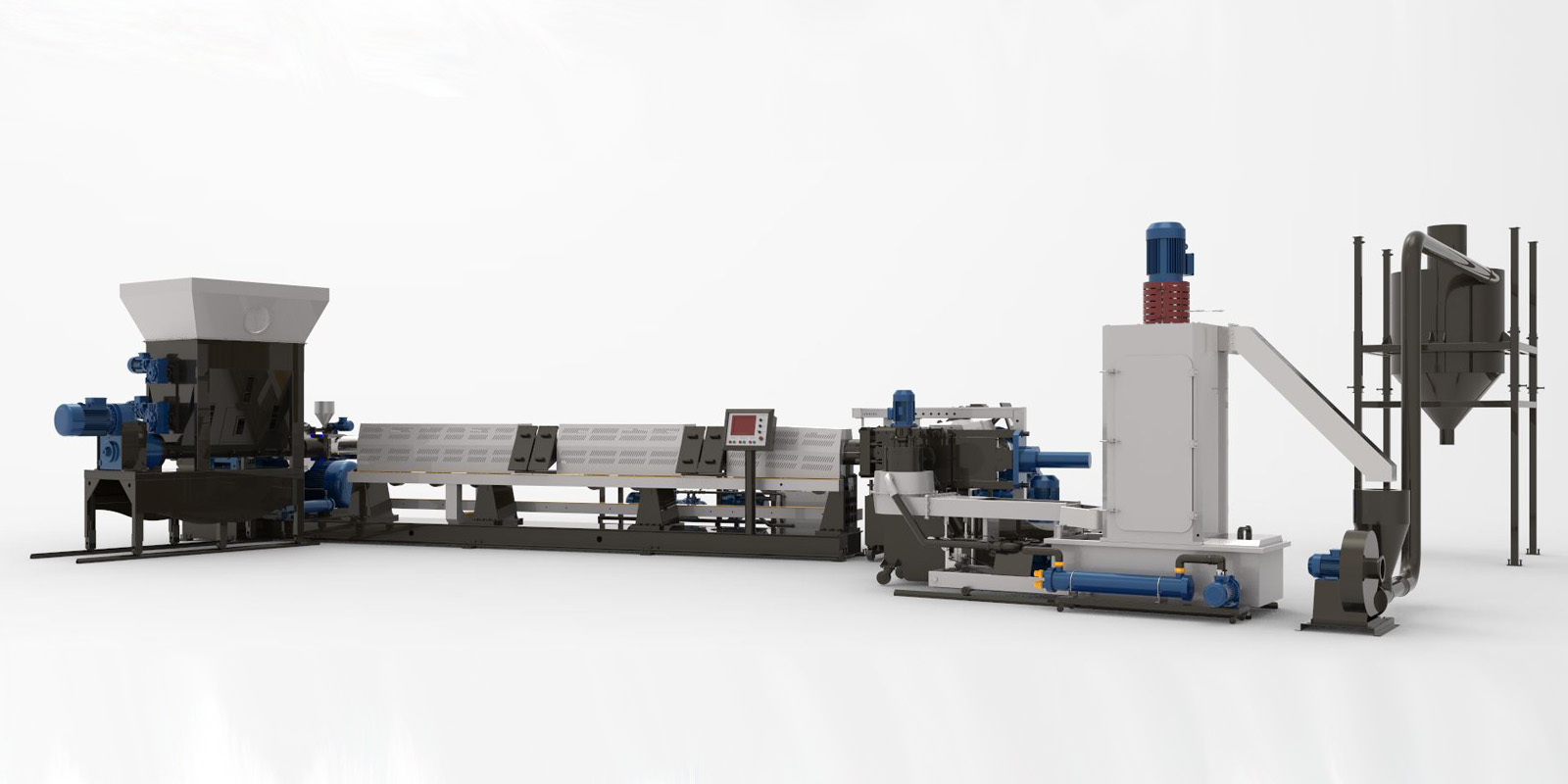

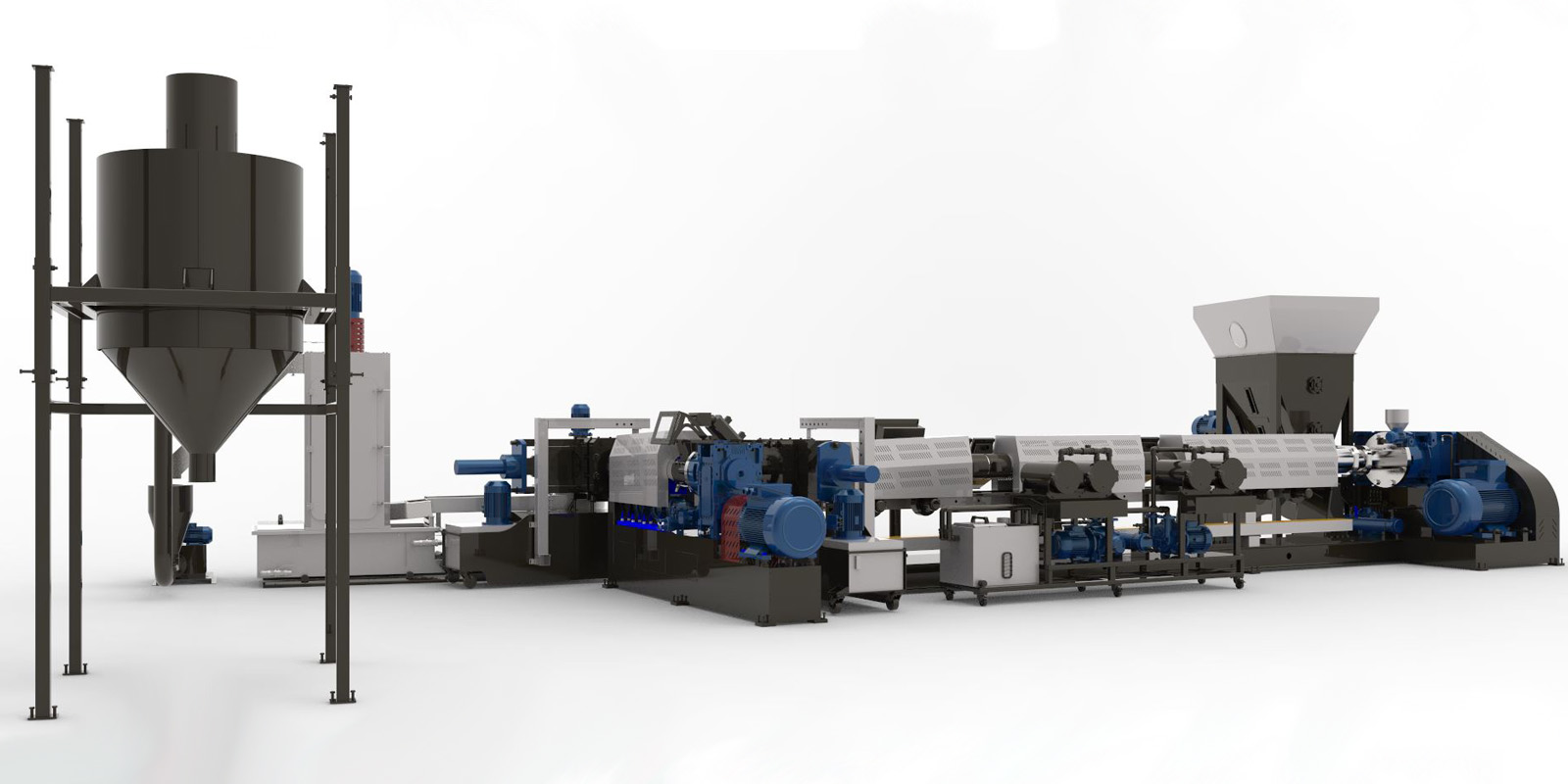

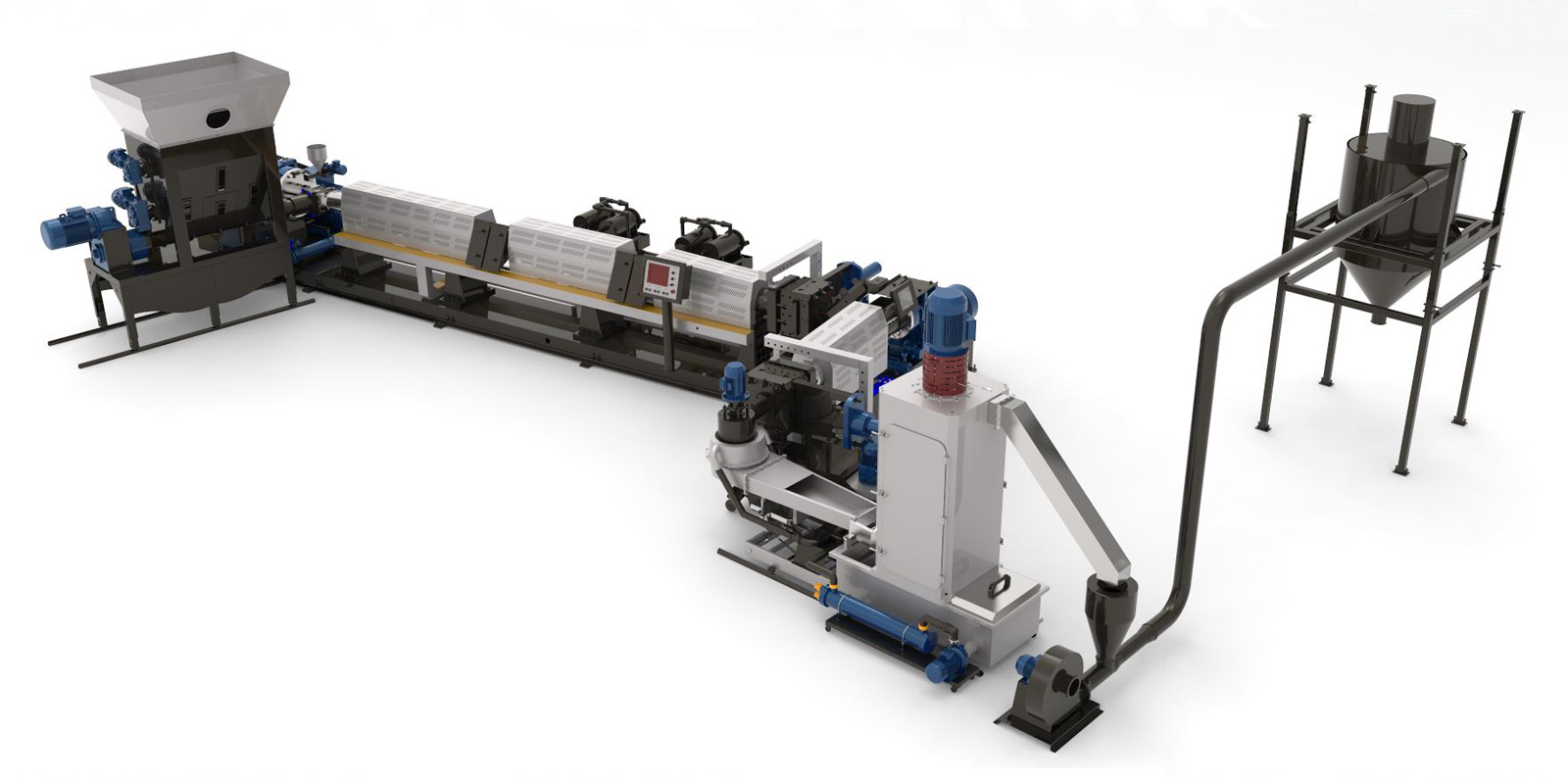

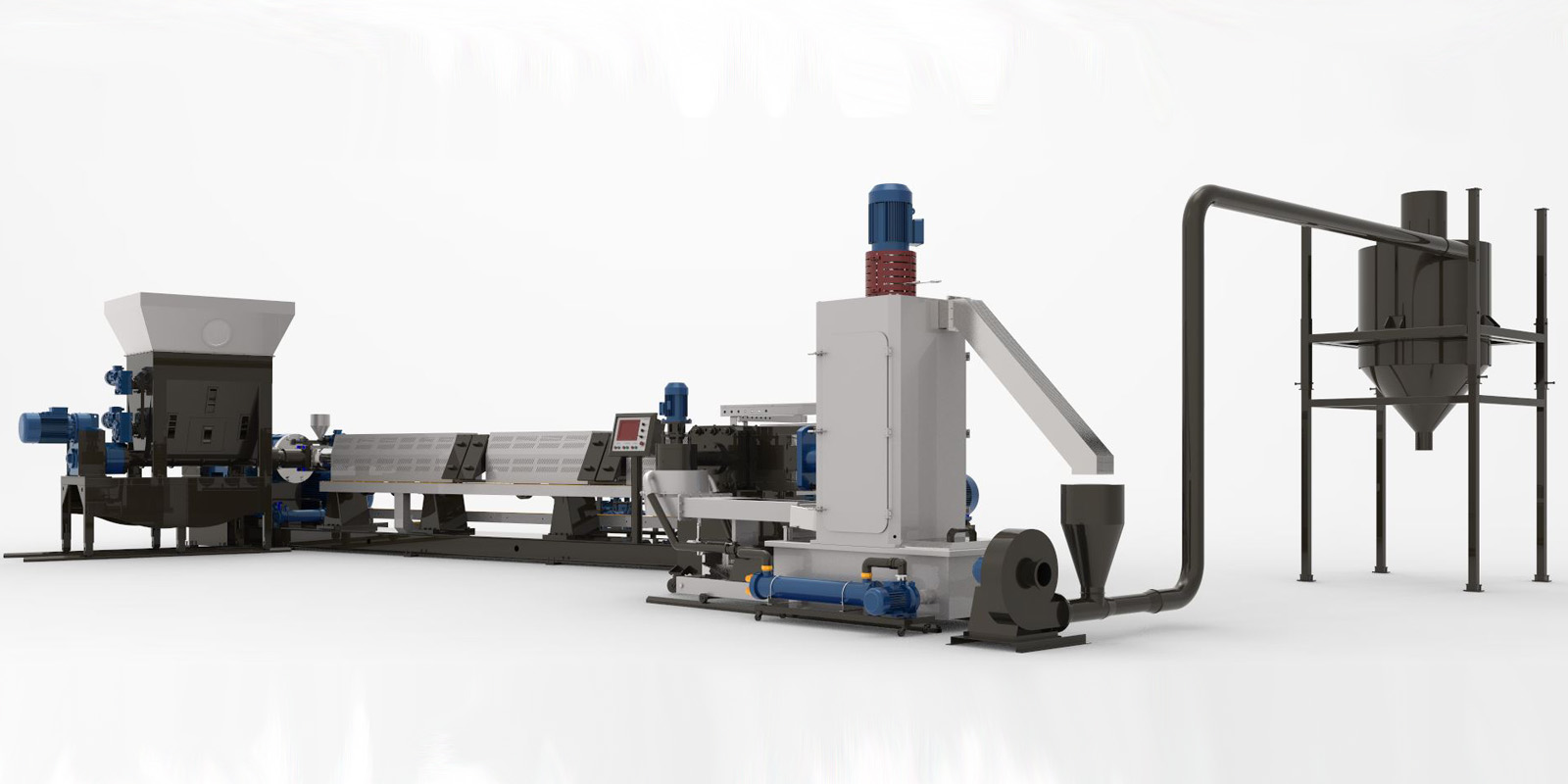

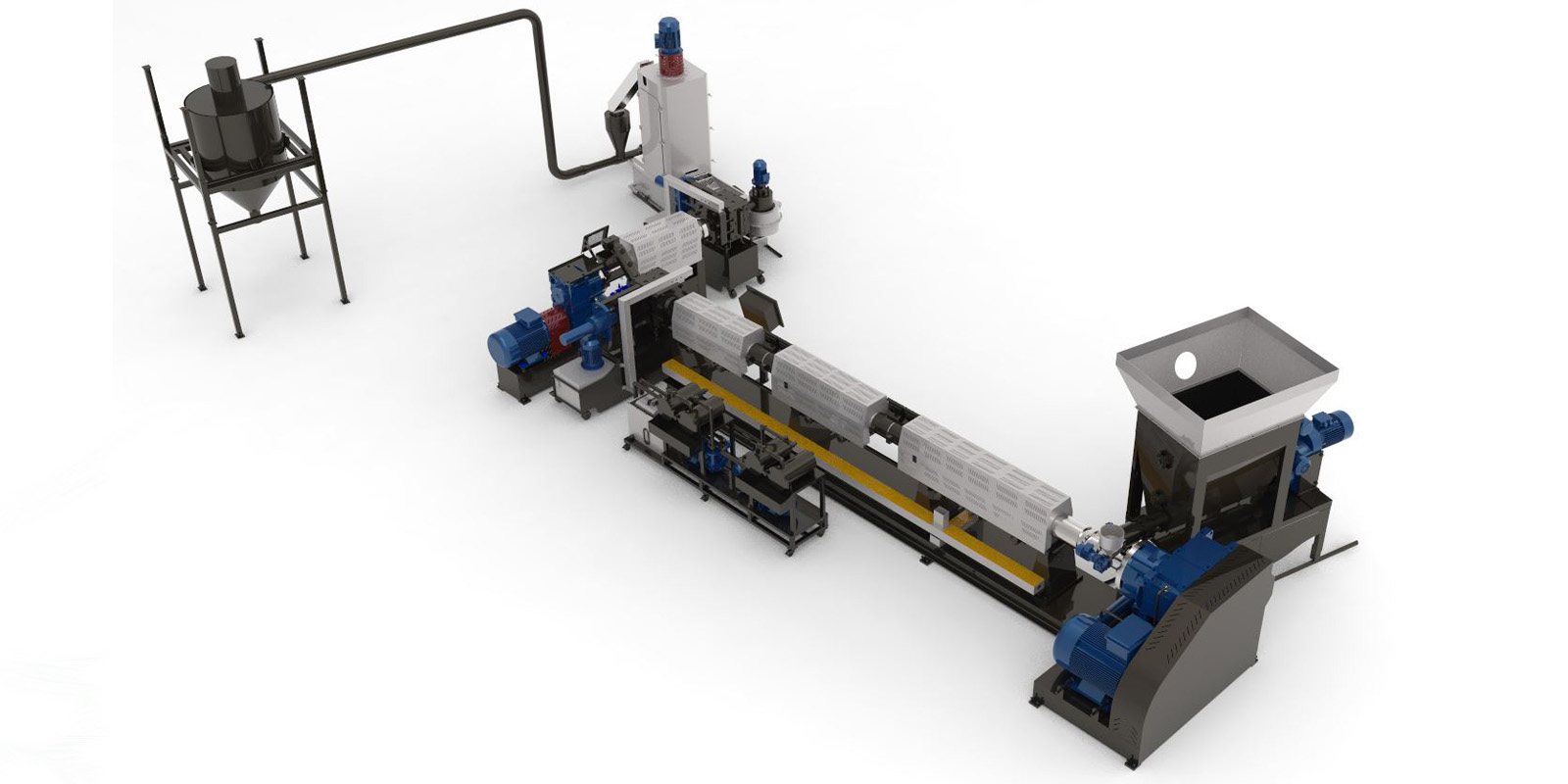

ALG TW CS Model is recycling machine coupled with side fed,double degassing and cascade extruder.Plastic particles crushed in certain dimensions.Along with side fed after feeding the main screw thanks to powerful vacuum system ,the gas particles are removed through double degassing and sorted out from molten plastic. Filtered plastic cascade is transferred to the extruder and ongoing gas is removed third times.Up to preference,it could be filterded again along with the filter that is applied to cascade extruder.

PRODUCTS THAT CAN BE RECYCLED

  • % 7 Islak Regrıd Çapak HDPE

    % 7 Islak Regrıd Çapak HDPE

  • Tarım Atığı Agricultural Yıkanmış Film PE PP

    Tarım Atığı Agricultural Yıkanmış Film PE PP

  • Yıkanmış  PE PP Film

    Yıkanmış PE PP Film

  • HDPE  Regrınd Boru Çapağı

    HDPE Regrınd Boru Çapağı

  • Köpük Geri Dönüşüm PS PE XPS OPS

    Köpük Geri Dönüşüm PS PE XPS OPS

  • Termoform Malzeme Geri Dönüşüm  PE PP ABS

    Termoform Malzeme Geri Dönüşüm PE PP ABS

  • PP Raffıa Scraps

    PP Raffıa Scraps

Model  ALG TW CS 120  ALG TW CS 140 ALG TW CS 160
Capacitykg/h 350-400 500-600 700-800
Extruder Screw Dia mm Ø120 Ø140 Ø160
Ext. Screw Revolutionrpm 90 90 85
Main Motorkw 110-132 132-160 160-200

ALG TW CS 160
